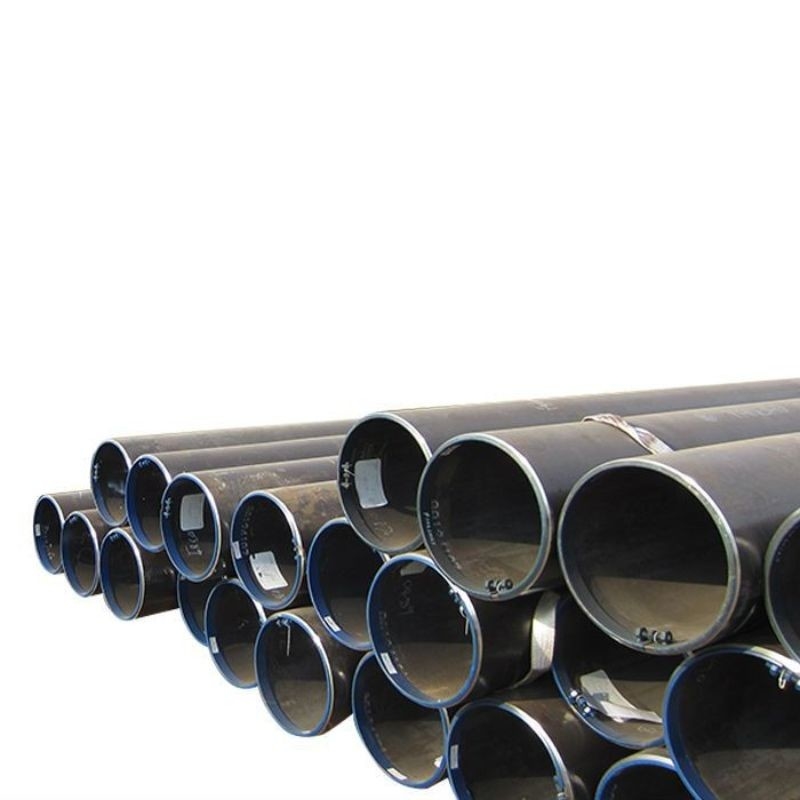

ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr
  • ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr
  • ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr
  • ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr
  • ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr

ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr

Place of Origin China
Brand Name TISCO BAOSTEEL
Certification SGS BV
Model Number Carbon Steel Sheet
Product Details
Name:
ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr
Length:
1000-12000mm,As Customers' Requirement
Surface:
Galvanized Coated,Black Painted,PE Coated,Black Painting Or Galvanized,etc.
Width:
600-2500mm,600mm-1250mm,1.8m,305mm/355mm/455mm/510mm
Thickness:
0.5-100mm,6-400mm,1mm-120mm,0.15mm-300mm
Material:
A36 A283 A387 1008 4320 SS400 S235jr
Pipe End:
Blunt
Alloy Or Not:
Non-Alloy
High Light:

JIS Carbon round ERW Steel Pipe

,

S235jr Carbon round Steel Pipe

,

120mm Carbon Steel Pipe

Payment & Shipping Terms
Minimum Order Quantity
1 ton
Price
To be negotiated
Packaging Details
Kraft paper, wooden case, packaging according to customer requirements
Delivery Time
10-15 days after advance payment
Payment Terms
L/C, T/T
Supply Ability
8,000 ton per month
Product Description

ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr





Specifications



High-Temperature Seamless Pipes ASTM A179 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B
Heat Exchanger Seamless Tubes ASTM A179
Low-Temperature Seamless Pipes ASTM A333 Gr. 3/6
Low-Temperature Seamless Tubes ASTM A334 Gr. 6
Seamless Pipes API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2



ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485

Atmospheric & Low Temp EFW Pipes ASTM A671 Gr. CC60/CC65/CC70
High Pressure & Moderate Temp EFW Pipes ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70
ERW/SAW Pipe API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2



ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485





What is ASME SA 179 (ASTM A179) Standard Specification

ASTM A179 (SA 179) standard specification covers seamless cold drawn low carbon steel pipe, for tubular heat exchanger, condensers and other similar heat transfer equipment.

The ASTM A179 tube covers the OD from 1/8” to 3”, which is 3.2m m to 76.2 mm. Other diameters and thickness smaller than the specified sizes also applicable to this standard, but mechanical properties is not applicable for the size smaller than 1/8” and 3.2 mm, or thickness smaller than 0.015 inch 0.4 mm.

Referred standards for manufacturing SA 179 tubes

Related ASTM standards is ASTM A450/A 450M The standard specification for the general requirements for carbon steel, ferritic alloy, austenitic alloy steel tubes.

Material specification requirements for a specific order

When we place a specific order for SA 179 tubing, we should include below material specifications:

a. Standard and the name of material: ASTM A179 / ASME SA 179 seamless tubes.
b. Manufacturing types in cold drawn
c. Quantity in meters, feet, or pieces.
d. Size including Diameters and minimum wall thickness
e. Length per pieces (Random or fixed length shall be specified)
f. Chemical composition (optional)

ASTM A179 / SA 179 tubes chemical composition

The chemical contents is C (Carbon) 0.06-0.18%, Mn (Manganese) 0.27-0.63%, P (Phosphorus) Max 0.035%, S (Sulfur) ≤ 0.035%. Moreover, in case supplied as an alloy grade that above specifications will not be applied.

Material Mechanical properties

The mechanical strength for ASTM A179 is min tensile strength 47 Ksi 325 Mpa, and min yield strength 26 Ksi 180 Mpa, elongation in 2 in or 50mm min at 35%.

Test methods referred

Hardness Test
Flattening Test
Flaring Test
Flange Test
Hydrostatic Test (Each tube shall be done this test or a substitute nondestructive electric test)

Marking Specification

ASTM A179 / ASME SA179 tubes shall be marked according to standard of A450, with product name and order number.

Octal have ASTM A179 / SA179 Tubing for sale

Supply Range as following:
Standard: ASTM A179 / ASME SA179 in cold drawn and low carbon seamless tubing
Outer Diameter available: 1/8” to 3”, which 3.2mm to 76.2mm
Wall Thickness available: 0.5mm to 14mm
Length: 10ft, 20ft, 40ft or customized length.



ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr 0



ASTM JIS Carbon Round ERW Steel Pipe / Hot Rolling Hollow Section 120mm S235jr 1







Payment Terms



1.Payment: T/T, L/C, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.



2.MOQ: 1pcs



3.Warranty : 3 years



4.Package Informations: 1) EXPORT, In 20 feet (GW 25 ton) or 40 feet Container (GW 25 ton)



2)as customer's requirement



Why choose us?

(1) The leading exporter in China special steel industry.

(2) Large stocks for various sizes, fast delivery date.

(3) Good business relationship with China famous factories.

(4) More than 7 years steel exporting experience.

(5) Good after-sales service guarantee.
