Seamless Carbon Steel Pipes
>
|
| Place of Origin | China |
| Brand Name | TISCO BAOSTEEL |
| Certification | SGS BV |
| Model Number | Q345 |
JIS G3445 Q235 NBK Seamless Carbon Steel Pipes 6 Inch Schedule 80
| Standard | DIN2391, EN10305, DIN17175,JIS G3445, ASTM A519, GB/T 8713... |
| Material | ST37/ST45/ST52/25Mn/27SiMn/E355/SAE1026/STKM13C..... |
| Outer diameter | 20mm-480mm |
| Wall thickness | 3mm-25mm |
| Length | 1-12m, random or fixed, as the clients' requests |
| Technology | High precision Cold drawn/ Cold rolled |
| Heat treatment | BK/BKS/NBK |
| Advantages | 1.Short delivery time |
| 2.Quality assurance | |
| 3.Competitive price | |
| 4.Superior Service |
Chemical composition of Materials:
| Steel Grade | C | Si | Mn | P≤ | S≤ | Cu≤ | Ni≤ | Cr≤ | Mo≤ | V≤ |
| ASTM A106 B | ≤0.3 | / | ≤1.2 | 0.05 | 0.06 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| ST35 | ≤0.18 | 0.15-0.35 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST45 | ≤0.25 | 0.15-0.35 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST52 | ≤0.2 | ≤0.55 | ≤1.5 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| CK45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
Mechanical Properties
| Steel Grade | Rm MPa | ReH Mpa |
| ST45 | ≥520 | ≥375 |
| ST52(E355) | ≥600 | ≥520 |
| SAE1026 | ≥600 | ≥510 |
| 16Mn | ≥600 | ≥520 |
| 20# | ≥520 | ≥375 |

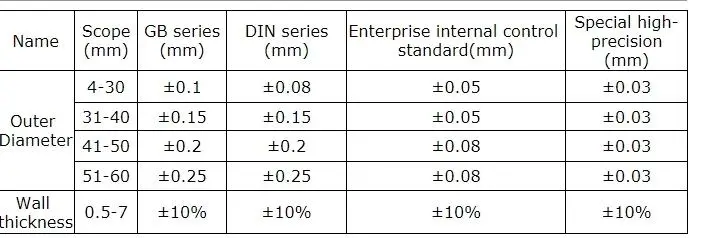

Tolerance table of Steel tube

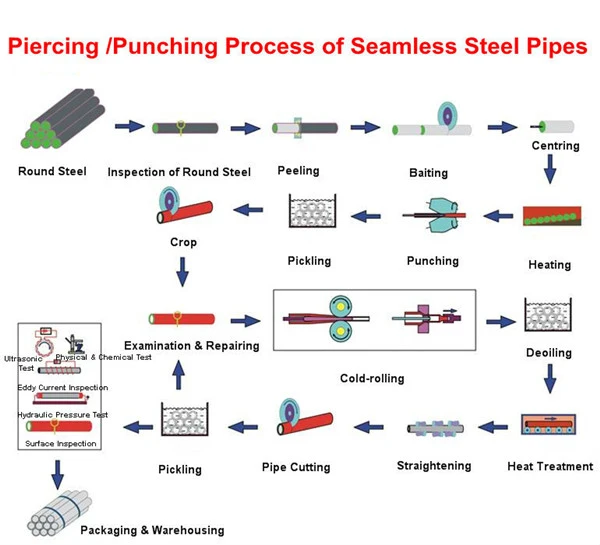

The flow chart of the production process:

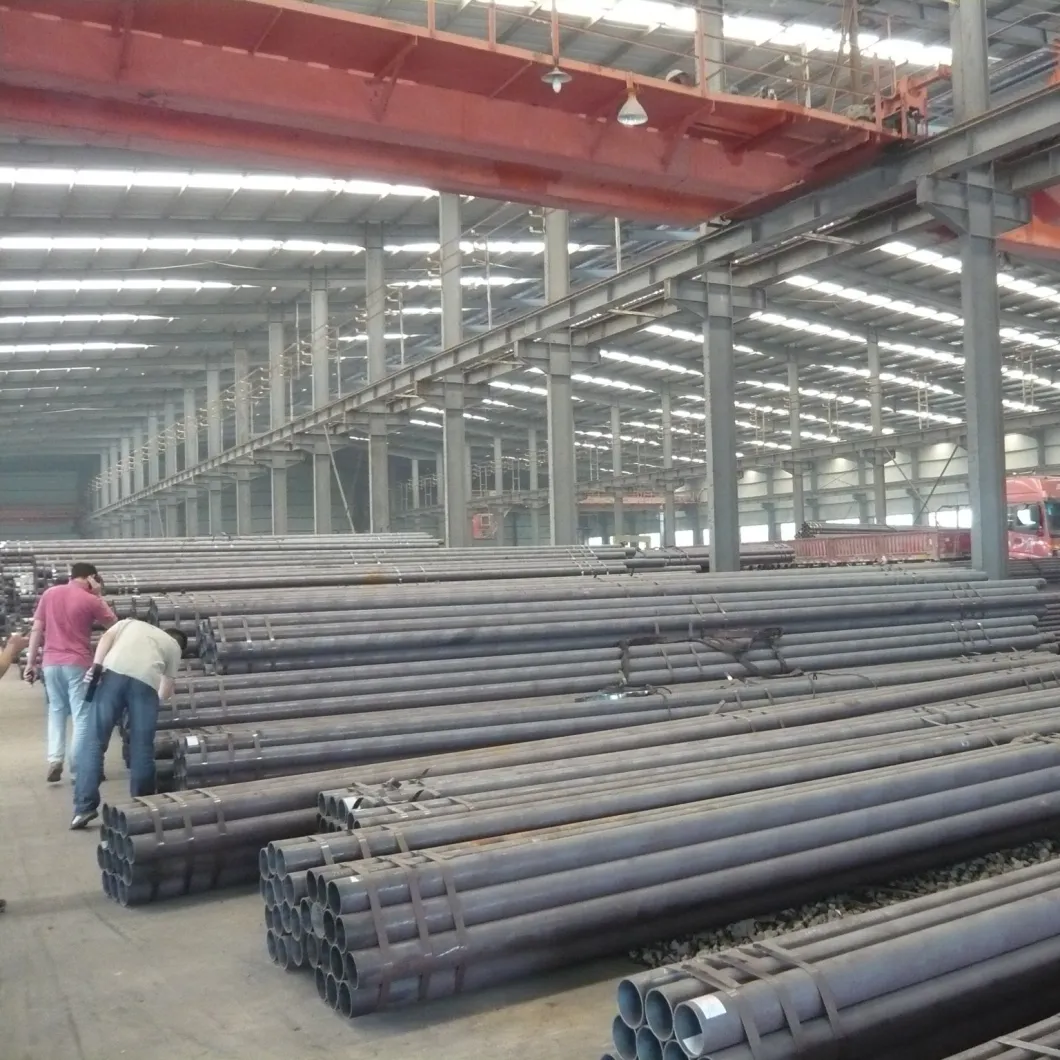

Factory & Machine Display:

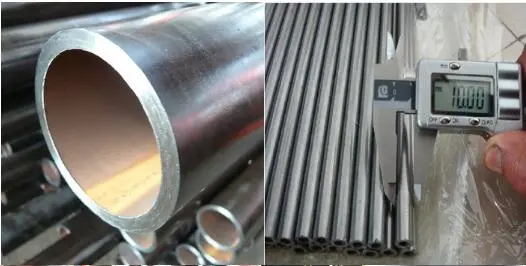

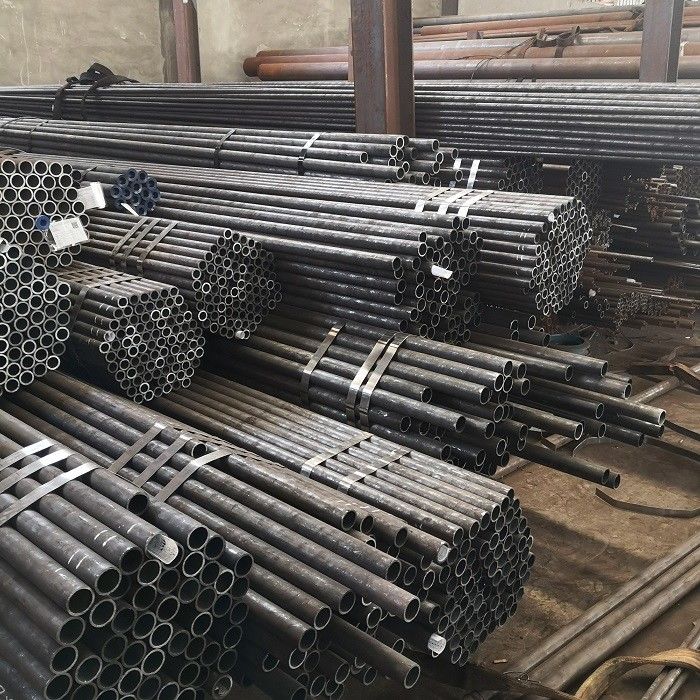

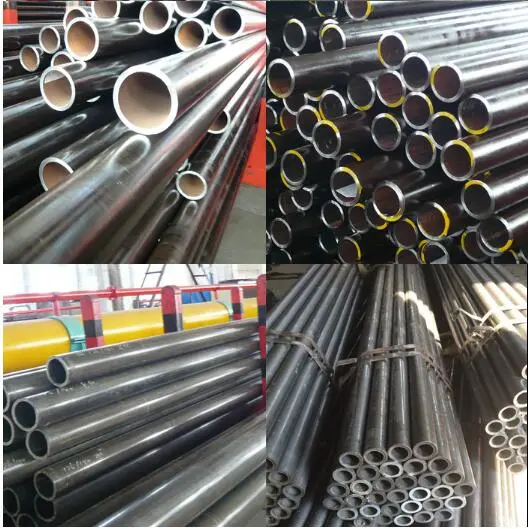

Product Display:
We have huge experience, expertise in Mild steel pipe and the best dedicated team to deliver best quality products delivered as well as services at the most affordable prices for Mild steel pipe. We are looking ourselves as good business partners for customers and are looking forward to establish long term professional relationship. With our world class manufacturing facilities to Mild steel pipe.
We are able to deliver on time for all grades of Mild steel pipe. Our stock house always has storage capacity for keeping lots of order from our clients. We make sure that the packaging of ordered materials is done in the best way.
