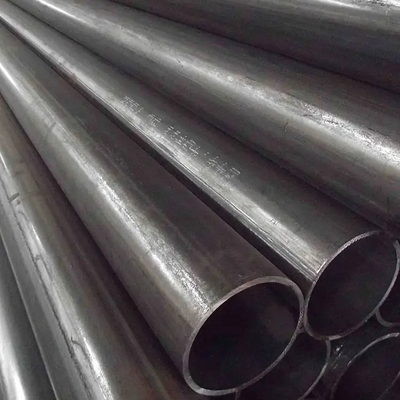

Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated
  • Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated
  • Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated
  • Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated
  • Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated
  • Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated

Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated

Place of Origin China
Brand Name TISCO BAOSTEEL
Certification SGS BV
Model Number Carbon Steel Sheet
Product Details
Name:
Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated
Length:
1000-12000mm,As Customers' Requirement
Width:
600-2500mm,600mm-1250mm,1.8m,305mm/355mm/455mm/510mm
Thickness:
0.5-100mm,6-400mm,1mm-120mm,0.15mm-300mm
Surface:
Galvanized Coated,Black Painted,PE Coated,Black Painting Or Galvanized,etc.
Material:
A36 A283 A387 1008 4320 SS400 S235jr
Invoicing:
By Actual Weight
Tolerance:
±1%
High Light:

Q235 Welded Carbon Steel Pipes

,

102*5.5mm Welded Carbon Steel Pipes

,

Galvanized Coated Welded Carbon Steel Pipes

Payment & Shipping Terms
Minimum Order Quantity
1 ton
Price
To be negotiated
Packaging Details
Kraft paper, wooden case, packaging according to customer requirements
Delivery Time
10-15 days after advance payment
Payment Terms
L/C, T/T
Supply Ability
8,000 ton per month
Product Description

Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated



Carbon steel pipe is the steel pipe produced with carbon steel, carbon content is about 0.05% ~ 1.35%,
Is the most common kind of steel pipe, such as: 10# steel, 20# steel, q195, q235... .
According to the purpose, the main standards used are:
gb/t8162
Structure with seamless steel pipe
gb/t8163
Seamless steel pipe for fluid transfer
gb3087
Seamless steel tubes for low and medium pressure boilers
gb5310
Seamless steel tubes for high pressure boilers
gb9948
Seamless steel pipe for petroleum cracking



Product name
Seamless steel tube/pipe
Standard
API 5L, ASME, ASTM B36, JIS, DIN, GB8162, GB8163, GB5310,etc.
Material
ASTM A106 GRB/ A53 GRB/ API 5L X42,X52,X60,X65,X70GRB/API 5 CT/ Q345/ ST42/ST37/ ST52.Q195/Q215/Q235/A179etc.
Thickness
2.5mm-75mm
Length
5.5m, 5.8m, 6m, 11.8m, 12m etc , other length is Available according to demands.
Outer diameter
5mm-630mm
Surface treatment
Black painting, black varnish, transparent oil, hot galvanized,
3PE,epoxy coating,BE,PE.etc.
Technique
Cold Rolled (Cold drawn)And Hot Rolled
Application
petroleum,chemical industry,electric power,boiler,high temperature resistant,
low temperature resistant, etc.
Package
1. Packed with 8 bundles tightened with metal belt and plastic wrapped if need
2. According to customer’s requirement
Delivery time
7-15 Days, It depends on the specific situation and quantity
Payment Term
T/T Or L/C







ASTM A283 Chemical Properties





  Grade A Grade B Grade C Grade D
Carbon, max 0.14 0.17 0.24 0.27
Manganese, max 0.90 0.90 0.90 0.90
Phosphorus, max 0.035 0.035 0.035 0.035
Sulphur, max 0.04 0.04 0.04 0.04

Silicon

Plates 1 1/2 in and under, max

Plates over 1 1/2 in

0.40 0.15-0.40 0.40 0.15-0.40 0.40 0.15-0.40 0.40 0.15-0.40
Copper min % when copper steel is specified 0.20 0.20 0.20 0.20







ASTM A283 Mechanical Properties





  Grade A Grade B Grade C Grade D
Tensile Strength:

45,000 -60,000 psi

[310 - 415 MPa]

50,000 -65,000 psi

[345 - 450 MPa]

55,000 75,000 psi

[380 - 515 MPa]

60,000 -80,000 psi

[415 - 550 MPa]

Min. Yield Point:

24,000psi

[165 MPa]

27,000psi

[185 MPa]

30,000psi

[205 MPa]

33,000psi [

230 MPa]

Elongation in 8": 27% min 25% min 22% min 20% min
Elongation in 2": 38% min 28% min 25% min 23% min









Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated 0



Q235 Welded Carbon Steel Pipes 102*5.5mm Round SS400 S235jr Galvanized Coated 1







Payment Terms



1.Payment: T/T, L/C, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.



2.MOQ: 1pcs



3.Warranty : 3 years



4.Package Informations: 1) EXPORT, In 20 feet (GW 25 ton) or 40 feet Container (GW 25 ton)



2)as customer's requirement



Why choose us?

(1) The leading exporter in China special steel industry.

(2) Large stocks for various sizes, fast delivery date.

(3) Good business relationship with China famous factories.

(4) More than 7 years steel exporting experience.

(5) Good after-sales service guarantee.
