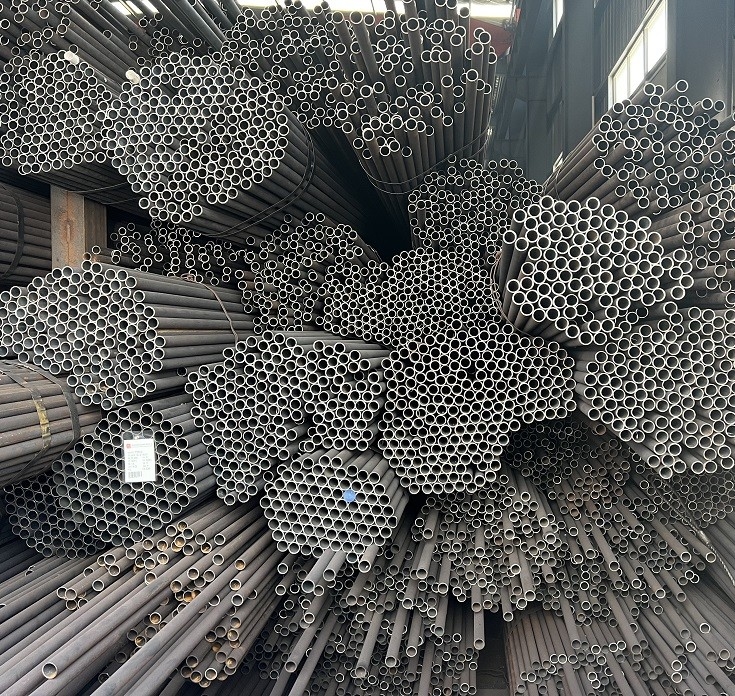

Aisi 10inch Seamles Carbon Steel Pipe Galvanized Schedule 40
|
Product name
|
Seamless steel tube/pipe
|
|||
|
Standard
|
API 5L, ASME, ASTM B36, JIS, DIN, GB8162, GB8163, GB5310,etc.
|
|||
|
Material
|
ASTM A106 GRB/ A53 GRB/ API 5L X42,X52,X60,X65,X70GRB/API 5 CT/ Q345/ ST42/ST37/ ST52.Q195/Q215/Q235/A179etc.
|
|||
|
Thickness
|
2.5mm-75mm
|
|||
|
Length
|
5.5m, 5.8m, 6m, 11.8m, 12m etc , other length is Available according to demands.
|
|||
|
Outer diameter
|
5mm-630mm
|
|||
|
Surface treatment
|
Black painting, black varnish, transparent oil, hot galvanized,
3PE,epoxy coating,BE,PE.etc. |
|||
|
Technique
|
Cold Rolled (Cold drawn)And Hot Rolled
|
|||
|
Application
|
petroleum,chemical industry,electric power,boiler,high temperature resistant,
low temperature resistant, etc. |
|||
|
Package
|
1. Packed with 8 bundles tightened with metal belt and plastic wrapped if need
2. According to customer’s requirement |
|||
|
Delivery time
|
7-15 Days, It depends on the specific situation and quantity
|
|||
|
Payment Term
|
T/T Or L/C
|
|||
ASTM A283 Chemical Properties
| Grade A | Grade B | Grade C | Grade D | |
| Carbon, max | 0.14 | 0.17 | 0.24 | 0.27 |
| Manganese, max | 0.90 | 0.90 | 0.90 | 0.90 |
| Phosphorus, max | 0.035 | 0.035 | 0.035 | 0.035 |
| Sulphur, max | 0.04 | 0.04 | 0.04 | 0.04 |
|
Silicon Plates 1 1/2 in and under, max Plates over 1 1/2 in |
0.40 0.15-0.40 | 0.40 0.15-0.40 | 0.40 0.15-0.40 | 0.40 0.15-0.40 |
| Copper min % when copper steel is specified | 0.20 | 0.20 | 0.20 | 0.20 |
ASTM A283 Mechanical Properties
| Grade A | Grade B | Grade C | Grade D | |
| Tensile Strength: |
45,000 -60,000 psi [310 - 415 MPa] |
50,000 -65,000 psi [345 - 450 MPa] |
55,000 75,000 psi [380 - 515 MPa] |
60,000 -80,000 psi [415 - 550 MPa] |
| Min. Yield Point: |
24,000psi [165 MPa] |
27,000psi [185 MPa] |
30,000psi [205 MPa] |
33,000psi [ 230 MPa] |
| Elongation in 8": | 27% min | 25% min | 22% min | 20% min |
| Elongation in 2": | 38% min | 28% min | 25% min | 23% min |
