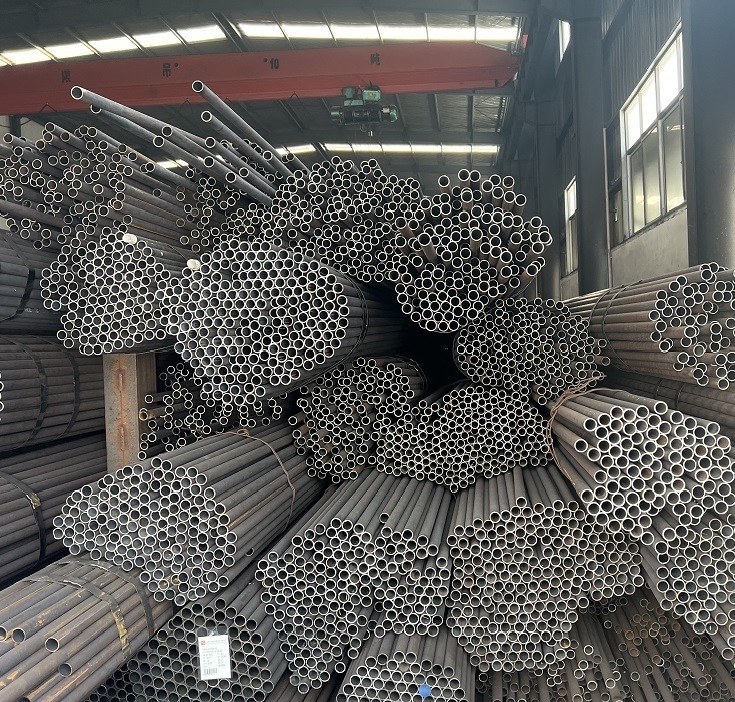

SA179 Seamless Carbon Steel Pipe 1250mm High Pressure Boiler Tube
High-Temperature Seamless Pipes | ASTM A179 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
Heat Exchanger Seamless Tubes | ASTM A179 |
Low-Temperature Seamless Pipes | ASTM A333 Gr. 3/6 |
Low-Temperature Seamless Tubes | ASTM A334 Gr. 6 |
Seamless Pipes | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2
ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2
ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
ASTM A179 (SA 179) standard specification covers seamless cold drawn low carbon steel pipe, for tubular heat exchanger, condensers and other similar heat transfer equipment.
The ASTM A179 tube covers the OD from 1/8” to 3”, which is 3.2m m to 76.2 mm. Other diameters and thickness smaller than the specified sizes also applicable to this standard, but mechanical properties is not applicable for the size smaller than 1/8” and 3.2 mm, or thickness smaller than 0.015 inch 0.4 mm.
Related ASTM standards is ASTM A450/A 450M The standard specification for the general requirements for carbon steel, ferritic alloy, austenitic alloy steel tubes.
When we place a specific order for SA 179 tubing, we should include below material specifications:
a. Standard and the name of material: ASTM A179 / ASME SA 179 seamless tubes.
b. Manufacturing types in cold drawn
c. Quantity in meters, feet, or pieces.
d. Size including Diameters and minimum wall thickness
e. Length per pieces (Random or fixed length shall be specified)
f. Chemical composition (optional)
The chemical contents is C (Carbon) 0.06-0.18%, Mn (Manganese) 0.27-0.63%, P (Phosphorus) Max 0.035%, S (Sulfur) ≤ 0.035%. Moreover, in case supplied as an alloy grade that above specifications will not be applied.
The mechanical strength for ASTM A179 is min tensile strength 47 Ksi 325 Mpa, and min yield strength 26 Ksi 180 Mpa, elongation in 2 in or 50mm min at 35%.
Hardness Test
Flattening Test
Flaring Test
Flange Test
Hydrostatic Test (Each tube shall be done this test or a substitute nondestructive electric test)
ASTM A179 / ASME SA179 tubes shall be marked according to standard of A450, with product name and order number.
Supply Range as following:
Standard: ASTM A179 / ASME SA179 in cold drawn and low carbon seamless tubing
Outer Diameter available: 1/8” to 3”, which 3.2mm to 76.2mm
Wall Thickness available: 0.5mm to 14mm
Length: 10ft, 20ft, 40ft or customized length.
