| Place of Origin | China |
| Brand Name | TISCO BAOSTEEL |
| Certification | SGS BV |
| Model Number | C12000 Copper Sheet |

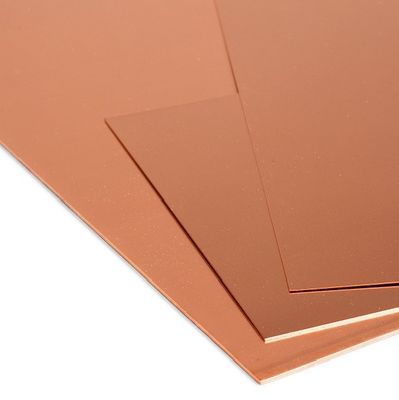

99.99 Pure 20 Gauge Copper Flat Sheets EDM C2720 For Decorative
Copper Alloys C10700 is used for electrical and electronic conductors, wave guides, cavity resonators, superconductor matrixes, vacuum tube and solid-state devices, and glass-to-metal seals.
| Copper | 99.99 min |
|---|---|
| Phosphorus | 0.0003 max |
| Remainder Total | 0.004 max |
| Tellurium | 0.001 max |
| Principal Design Features | Copper, OFE, Oxygen Free Electronic. C10700 has conductivity 101% IACS, the highest among coppers. |
|---|---|
| Copper Alloys C10700 Applications | Used for electrical and electronic conductors, wave guides, cavity resonators, superconductor matrixes, vacuum tube and solid-state devices, and glass-to-metal seals. |
| Copper Alloys C10700 Machinability | The machinability rating of this alloy is 20. (Where Alloy 360 FC Brass is 100). |
| Copper Alloys C10700 Forming | This alloy has good ductility and may be readily formed by all conventional methods. Because the alloy is stronger than regular steel it requires more powerful equipment to accomplish forming. Heavy-duty lubricants should be used during cold forming. It is essential to thoroughly clean the part of all traces of lubricant after forming as embrittlement of the alloy may occur at high temperatures if lubricant is left on. |
| Copper Alloys C10700 Welding | Soldering is rated as "excellent", brazing is rated as "excellent", oxyacetylene welding is rated as "fair", gas shielded arc welding is rated as "good", coated metal arc welding is "not recommended", spot welding is "not recommended", seam welding is "not recommended" and butt welding is rated as "fair" |
| Copper Alloys C10700 Forging | The hot forgeability rating of this alloy is 65. (Forging brass = 100). The recommended hot working temperature for this alloy is between 1400 and 1600 F. |
| Copper Alloys C10700 Hot Working | This alloy's capacity for being hot formed is rated as "excellent". |
| Copper Alloys C10700 Cold Working | The capacity for cold working this alloy is rated as "excellent". |
| Copper Alloys C10700 Annealing | The annealing temperature for this alloy is between 700 and 1200 F. |
| Density (lb / cu. in.) | 0.323 |
|---|---|
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 10.3 |
| Melting Point (Deg F) | 1981 |
| Thermal Conductivity | 226 |
| Mean Coeff Thermal Expansion | 9.4 |
| Modulus of Elasticity Tension | 17000 |
