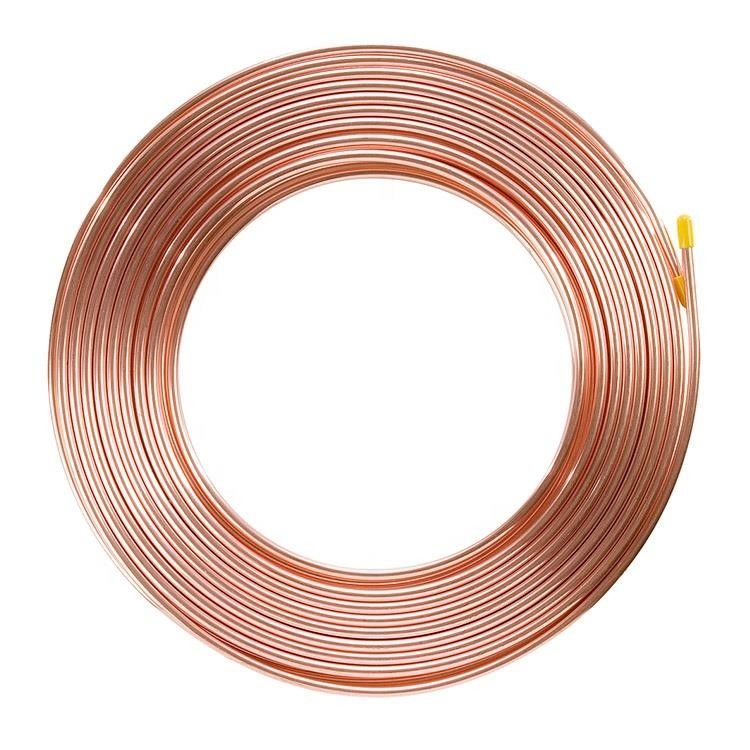

C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding
  • C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding
  • C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding
  • C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding

C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding

Place of Origin China
Brand Name TISCO BAOSTEEL
Certification SGS BV
Model Number C17200 Copper Pipe
Product Details
Name:
C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding
Grade:
Cooper,C11000 C10200 C12000 C12200,TU2,TP1,C1100
Alloy Or Not:
Non-alloy,Is Alloy
Type:
Pancake Coil Copper Pipe,Straight Copper Pipe,Insulated Copper Pipe,straight And Coil,copper Tube/ Copper Pipe
Cu (min):
99.99%
Length:
6m,3m,or As Required,1m,4m
Outside Diameter:
2mm~914mm,2mm~20mm,3-150mm,0.3-3.0,From 3/16"---11/8"
Thickness:
0.1mm~300mm,0.3-15mm,0.5mm-50mm,0.762mm,as Customer Require
High Light:

4m Pancake Coil Copper Pipe

,

C17200 Pancake Coil Copper Pipe

,

Arc Welding 15mm coiled copper pipe

Payment & Shipping Terms
Minimum Order Quantity
1 ton
Price
To be negotiated
Packaging Details
Kraft paper, wooden case, packaging according to customer requirements
Delivery Time
10-15 days after advance payment
Payment Terms
L/C, T/T
Supply Ability
8,000 ton per month
Product Description

C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding



C17200 Beryllium Copper (AMS 4535) is the most specified copper beryllium and is available at Morgan Bronze in both Solution and Precipitation Heat Treated tubing as well as Solution Heat Treated Rod and Bar.



C17200 Beryllium Copper (AMS 4535) is the most specified copper beryllium and is available at Morgan Bronze in both Solution and Precipitation Heat Treated tubing as well as Solution Heat Treated Rod and Bar. In its age hardened condition C17200 attains the highest strength and hardness of any commercial copper based alloy. The ultimate tensile strength can exceed 200 ksi and the hardness approaches Rockwell C45. This alloy is used in bearings and pivoting members for aircraft landing gear, bushings and washers for tri-cone drilling bits, pressure housings for magnetometers and other instruments, as well as resistance welding applications.

Other terms for this alloy are: Copper Beryllium Bar; ASTM B 643 Alloy 17200; Copper Beryllium Tube; AMS 4650; C 17200; AMS 4535; Alloy 25; SAE J463; ASTM B 196 Alloy 17200; CuBe2; BeCu

Notice: The weights listed are the best estimates of the actual weights we will ship. They are a combination of the calculated theoretical weights and an average of actual weights. Our weights are conservative to the heavier side but there may be slight variations in weight from bar to bar.

The Physical, Fabrication and Thermal Properties shown here represent reasonable approximations suitable for general engineering use. Due to commercial variations in compositions and to manufacturing limitations, they should not be used for specification purposes.



Specification



Equivalent Specifications



AMS 4535 – Tubing AMS 4650 – Rod & Bar





Reference Specifications





ASTM B 643 ASTM B 196 AMS 4533







Chemical Composition (%)



Cu* Ni + Co Ni + Co + Fe Be Al Si
Remainder 0.20 min. 0.6 max. 1.80 – 2.00 0.20 max. 0.20 max.





Sum of all named elements = 99.5%





Mechanical Properties



Tubing – Solution & Precipitation Heat Treated TF00 (formerly AT) English Metric
Tensile Strength, min. 161 ksi 1110 MPa
Yield Strength, min. 130 ksi 896 MPa
Elongation in 4D, min 3% 3%
Rod & Bar – Solution Heat Treated TB00 (formerly A)
Tensile, maximum 85 ksi 586 MPa
Elongation 35% 35%
Rod & Bar – Solution & Precipitation Heat Treated
Tensile Strength, min. 165 ksi 1138 MPa
Yield Strength, min. 140 ksi 965 MPa
Elongation 3% 3%



Physical Properties



  English Metric
Melting Point – Liquidus 1800° F 982° C
Melting Point – Solidus 1590° F 866° C
Density 0.290 lb/in³ at 68° F 8.25 gm/cm³ @ 20° C
Specific Gravity 8.260 8.26
Electrical Resistivity (Annealed) 46.2 ohms-cmil/ft @ 68° F 7.68 microhm-cm @ 20° C
Electrical Conductivity* 22 %IACS @ 68° F 0.12 MegaSiemens/cm @ 20° C
Thermal Conductivity 62 Btu · ft/(hr · ft² · °F) @ 68° F 107.3 W/m · °K @ 20° C
Coefficient of Thermal Expansion 9.90 · 10-6 per °F (68-572° F) 17.8 · 10-6 per °C (20-300° C)
Specific Heat Capacity 0.10 Btu/lb/°F @ 68°F 419.0 J/kg · °K @ 293° K
Modulus of Elasticity in Tension 18,500 ksi 128,000 MPa





Fabrication Practices



Soldering Good Capacity for Being
Cold Worked
Good
Brazing Good Capacity for Being
Hot Formed
Excellent
Oxyacetylene Welding Not Recommended Hot Forgeability Rating
(Forging Brass = 100)
40
Gas Shielded Arc Welding Good
Coated Metal Arc Welding Good Hot Working Temperature 1200-1500° F
or 649-816° C
Resistance Welding – Spot Good Annealing Temperature 1425-1475° F
or 775-802° C
Resistance Welding – Seam Fair
Resistance Welding – Butt Fair





C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding 0



C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding 1





C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding 2



C17200 4m Pancake Coil Copper Pipe 15mm Coiled Arc Welding 3
