Embossed 316 316L Stainless Steel Coils 904L 2B Finish Bright White
| Place of Origin | China |
|---|---|
| Brand Name | TISCO, BAOSTEEL |
| Certification | SGS, BV |
| Model Number | Stainless Steel Coil |
| Minimum Order Quantity | 1 ton |
| Price | To be negotiated |
| Packaging Details | Kraft paper, wooden case,packaging according to customer requirements |
| Delivery Time | 10-15 days after advance payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 8,000 ton per ton |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 2B Finish Embossed 316 Cold Rolled Stainless Steel Coils Yimao | Grade | 300 Series |
|---|---|---|---|
| Type | Coil | Material | 201 202 304 316 321 410 420 904L 2205 |
| Color | Bright White | Width | 1000-2000mm,600--1800mm Al Available,600mm-1250mm,250mm To 1000mm,1220mm(4')(48'') |
| Thickness | 0.3-120mm,0.1mm-100mm,0.15-3.0mm | ||
| High Light | 904L Stainless Steel Coils,2B finish Stainless Steel Coils,embossed 316 stainless steel coil |
||
Product Description

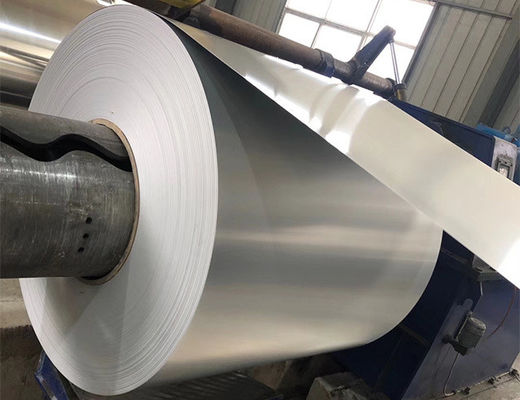

2B Finish Embossed 316 cold rolled Stainless Steel Coils Yimao
316 Stainless Steel Coil/Strip is austenitic stainless steel containing chromium and nickel with additional molybdenum that increases resistance to corrosion & oxidation to many chemical & marine environments. Alloy 316 SS Coil/Strip are one of the best stainless steel grades after SS 304 as they offer high-temperature strength and excellent working life.
Specifications for 316/316L SS Coil/Strip
These are the Standard specifications of 316/316L Stainless Steel Coil/Strip. We also manufacture and export any custom specification as per client’s requirement.
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Types of Stainless Steel 316/316L Coil/Strip
| Stainless Steel 316 Plain Coil/Strip | 316L Stainless Steel Shim Coil/Strip |
| Stainless Steel 316 Perforated Coil/Strip | Stainless Steel 316L Designer Coil/Strip |
| Stainless Steel 316 Hot Rolled Coil/Strip | 316L Stainless Steel Cold Rolled Coil/Strip |
| SS 316 Stainless Steel Coil/Strip | Stainless Steel 316L Chequered Coil/Strip |
316/316L Stainless Steel Coil/Strip Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
Mechanical Properties of SS 316/316L Coil/Strip
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Equivalent Grades of SS 316/316L Coil/Strip
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316/316L Coil/Strip - Industries & Applications
Our Coil/Strip are used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Factory
Why Choose Us?
1. who are we?
We are based in Shandong, China, start from 2019,sell to Domestic Market and Abroad Market. There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
stainless steel plate,stainless steel coil,stainless steel sheet,stainless steel pipe and tube,sainless steel bar
4. why should you buy from us not from other suppliers?
Runs perennial exports of quality assured steel mills ,including Shanxi TISCO, Baosteel, Shanghai Krupp, Ningbo Baoxin, Guangzhou Lianzhong, Zhangjiagang Pohang, Qingdao Pohang, Sweden AvestaPolarit, Finland OUTKUMPU, Spain Acerinox, South Africa Columbus
