2mm Thickness EN10327 Cold Rolled Galvanized Steel Coil SGCC

Place of Origin China
Brand Name TISCO BAOSTEEL
Certification SGS BV
Model Number Galvanized Coil
Minimum Order Quantity 1 ton
Price To be negotiated
Packaging Details Kraft paper, wooden case, packaging according to customer requirements
Delivery Time 10-15 days after advance payment
Payment Terms L/C, T/T
Supply Ability 8,000 ton per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Guaranteed Quality 0.15-2mm Thickness Roll Cold Rolled Galvanized Steel Coil Width 600mm-1250mm,1250mm Or Under,600-1500mm
Standard ASTM,AISI,GB,JIS,DIN Length As Your Requirements,Customer's Requirement
Application Roofing,Decor,Flange Plate,commercial Use,Forming Technique Cold Rolled,Hot Rolled
Grade SGCC,steel,DX51D+Z,Q195 DX51D DX53D SGCC Coil Weight 2.5-8ton,3-8 Tons,3-10 Tons,3-5 Tons
High Light

EN10327 Cold Rolled Galvanized Steel Coil

,

2mm Cold Rolled Galvanized Steel Coil

,

SGCC gi steel coil

Leave a Message
Product Description

Guaranteed Quality 0.15-2mm Thickness Roll Cold Rolled Galvanized Steel Coil

Galvanized Coil has excellent performance, possessing ideal comprehensive properties of corrosion resistance, formation and coating. It is produced by passing the steel sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc's characteristic.

Specification



Standard
JIS G3302 / ASTM A653M / EN10327 / DIN17162
Grade
SGCC/DC51D/DX51D/DX52D/SGSS/SGCD1/SGCD2/SGCD3
Coil ID
508/610MM
Thickness
0.15-2mm
Width
600-1250mm
Zinc coating
30~600G/M2
Hardness
Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Surface Treatment
Light Oil, Unoil,dry, chromate passivated, non-chromate passivated.
Spangle
Regular spangle, minimal spangle, zero spangle, big spangle
coil weight
3-6 Tons or as customer requirements
Packing
Standard seaworthy export packing: waterproof paper+steel trippacked+wooden case seaworthy package
Delivery
Within 7-15days

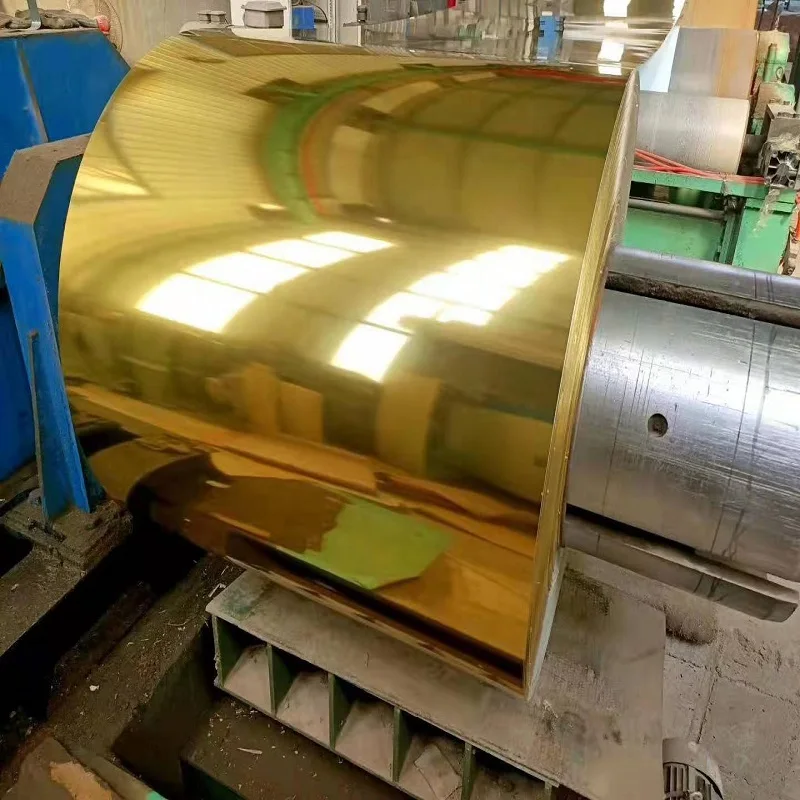

2mm Thickness EN10327 Cold Rolled Galvanized Steel Coil SGCC 0

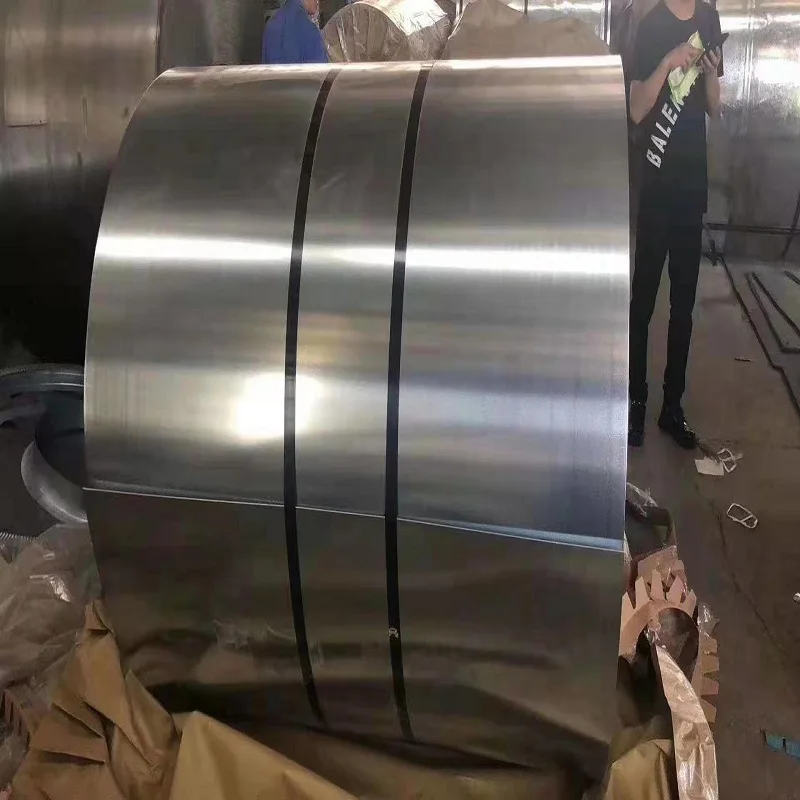

2mm Thickness EN10327 Cold Rolled Galvanized Steel Coil SGCC 1
2mm Thickness EN10327 Cold Rolled Galvanized Steel Coil SGCC 2

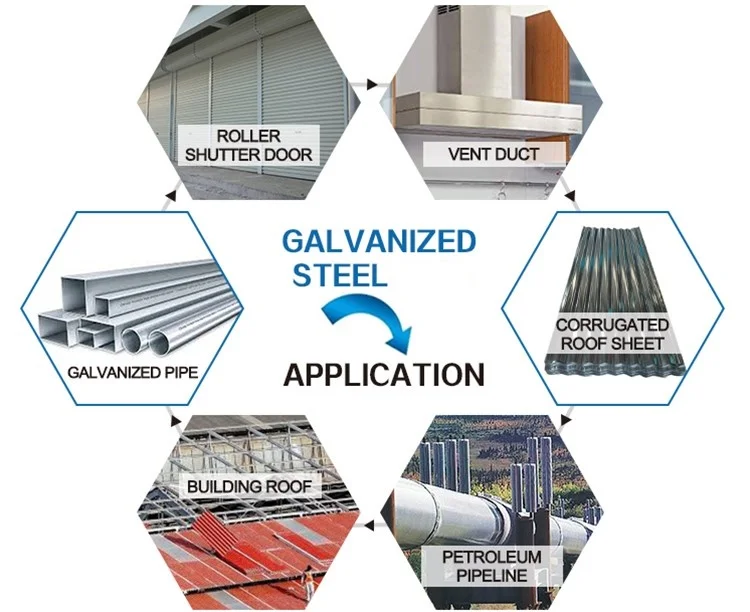

Application


2mm Thickness EN10327 Cold Rolled Galvanized Steel Coil SGCC 3


What are the Characteristics of the Galvalume steel coil?

Because it is produced through applying Al-Zn coat on both faces by hot dip process. It enjoys both the physical protective feature and durability of Al and the electrochemical protective property of Zn.

>>Machinability: It can satisfy the processing requirements of rolling, coiling and others processes alike.

>>Thermal resistance: Common HDG steel plate normally works under 230℃, and has its color changed at 250℃, however, Galvalume steel plate can sustain the environment at 315℃ for long time.

>>High reflectivity: Reflection ability of heat and light is twice as much as those of hot-dip zinc steel sheet, and its
reflectivity is more than 0.70, which is an ideal construction materials of saving energy.


Packaging

2mm Thickness EN10327 Cold Rolled Galvanized Steel Coil SGCC 4



FAQ


1. How is the quality of your products?
Our products are manufactured in strict accordance with national and international standards, and we test each product beforedelivery. If you would like to view our quality certification and various test reports, please ask us.

2. How about price?
We are a factory and be able to give you lowest price. Please trust the quotation we would give you, it is professional one.

3. Why should you chose us?
Chose happens because of quality, then price, We can give you both. Additionally, we can also offer professional products inquiry,products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.
