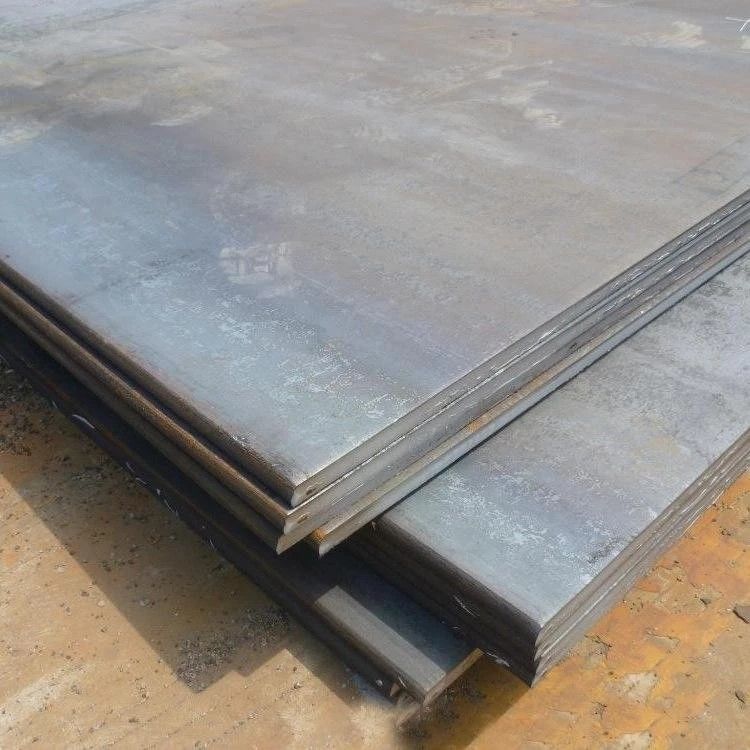

ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
  • ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
  • ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
  • ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
  • ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
  • ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572

ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572

Place of Origin China
Brand Name TISCO BAOSTEEL
Certification SGS BV
Model Number Carbon Steel Sheet
Product Details
Name:
ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572
Material:
50#
Technique:
Hot/Cold Rolled
Width:
305mm/355mm/455mm/510mm,1500
Application:
Boiler Plate,Container Plate,Ship Plate,Welding Carbon Steel Materials
Length:
1000-12000mm,as Your Requirement
Thickness:
0.5-100mm,6-400mm,1mm-120mm,2.0-60mm
Coil Weight:
3-8 Tons,3-5 Tons,20 Tons,3-10 Tons
High Light:

ASME SA516 mild carbon steel plate

,

mild carbon steel plate 15 gauge

,

ASTM A572 high tensile steel plate

Payment & Shipping Terms
Minimum Order Quantity
1 ton
Price
To be negotiated
Packaging Details
Kraft paper, wooden case, packaging according to customer requirements
Delivery Time
10-15 days after advance payment
Payment Terms
L/C, T/T
Supply Ability
8,000 ton per month
Product Description

ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572


astm a572 grade 50 is useful in making buildings, construction, bridges, equipment machinery, truck parts, transmission towers, towers, and freight cars. It is a higher yield and tensile strength compared to ASTM A36.
hshr plate astm a572 grade 50 is a high strength, low alloy steel plate that offers an optimum combination of strength, weldability and notch toughness with economy.
post-weld heat treatment of sa572 grade 50 may degrade heat-affected zone strength and toughness. Pretesting of specific welding and post-weld heat-treating procedures is suggested to assure perfection of final property levels.



Specification



A572 Grade 50 Steel Plate Specification Chart

ASTM A572 Specifications ASTM / ASME
ASTM A572 Gr 50 Carbon Steel Plates Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
ASME SA 572 Gr. 50 Carbon Steel Coils Thickness 8mm-300mm,
ASTM A572 Gr. 42 CS Plates Width 1500-4020mm,
ASME SA 572 Gr. 50 CS Coils Length 3000-27000mm
Corten Steel ASTM A572 50 Plates Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
ASTM A572-50 Corten Steel Plates Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
ASTM A572 50 Steel Plate Materials Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
ASTM A572 Yield Steel Plate Grade Corten Steel ASTM A572 50, ASTM A572 Grade 42/50 Sheets



ASTM A572m Sheet Tolerance Standard



Thickness (Inches) Thru 47" 48 to 59" 60 to 71" 72 to 83" 84 to 95" 96 to 107" 108 to 119" 120 to 131" 132 to 143" 144 to 167"
To under 1/4 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.04 -
1/4 to under 5/16 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.04 0.04 -
5/16 to under 3/8 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.04 0.04 0.05
3/8 to under 5/8 0.03 0.03 0.03 0.03 0.03 0.03 0.04 0.04 0.05 0.06
3/4 to under 1 0.03 0.03 0.03 0.03 0.04 0.04 0.05 0.05 0.06 0.07
1 to under 2 0.06 0.06 0.06 0.06 0.06 0.07 0.08 0.10 0.10 0.11
2 to under 3 0.09 0.09 0.09 0.10 0.10 0.11 0.12 0.13 0.14 0.15
3 to under 4 0.11 0.11 0.11 0.11 0.11 0.13 0.14 0.14 0.14 0.15
4 to under 6 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.20





Size Chart of ASTM A572 Grade 42 Plate



GRADE GAUGE (INCHES) WIDTH (INCHES) LENGTH (INCHES)
A572 0.1875 96 240/480
A572 0.2500 60/96/120 240/480
A572 0.3125 60/96/120 240/480
A572 0.3750 60/96/120 240/480
A572 0.5000 60/96/120 240/480
A572 0.6250 60/96/120 240/480
A572 0.7500 60/96/120 240/480
A572 0.8750 60/96/120 240/480
A572 1.0000 60/96/120 240/480
A572 1.1250 60/96/120 240/480
A572 1.2500 60/96/120 240/480
A572 1.5000 60/96/120 240/480
A572 1.7500 60/96/120 240/480
A572 2.0000 60/96/120 240/480
A572 2.2500 96 240/480
A572 2.5000 96 240/480
A572 2.7500 96 240/480
A572 3.0000 96 240/480
A572 3.2500 96 240
A572 3.5000 96 240
A572 3.7500 96 240
A572 4.0000 96 240
A572 5.0000 96 240
A572 6.0000 96 240





A572 Grade 50 Steel Plates Chemical Element



Grade C Mn P V Ni Co S Si
A572 Grade 50 Plate 0.23 1.35 0.04 0.06 0.015 0.05 0.05 0.4
A572 Grade 42 Plate 0.21 1.35 0.04 0.06 0.015 0.05 0.05 0.4





A572 gr 65 Low-Alloy Structural Steel Plates Mechanical Analysis



Grade Thickness Yield Tensile Elongation
A572 Grade 50 Plate 8mm-200mm MPa -345 min MPa – 450 18-21%
A572 Grade 42 Plate 8mm-200mm MPa -290 min MPa – 415 20-24%





Equivalent Of ASTM A572 Grade 40 Plate



Grade India
IS		 England
BS		 Sweden
MNC		 Belgium
NBN		 Europe
EN		 Russia
GOST
A572 Grade 50 Plate FE410WC 43EE SS14,14,01 AE 295 DD S275 J2G3
Fe430 D2
S275NL



ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572 0

ASME SA516 Mild Carbon Steel Plate High Tensile 15 Gauge ASTM A572 1
