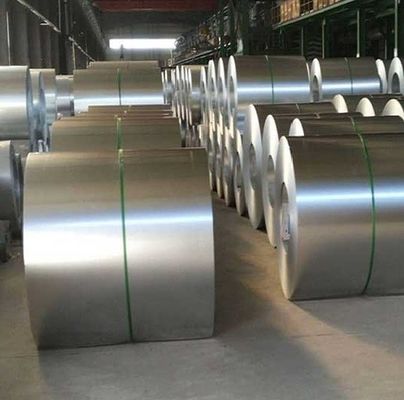

Bright 201 430 309 80mm Thickness Stainless Steel Coils 2B Prime Hot Rolled
Types 309 Stainless Steel and 309S are austenitic chromium-nickel stainless steels that provide excellent corrosion resistance and heat resistance plus good strength at room and elevated temperatures. Type 309S Stainless Steel is identical to Type 309 except for a lower carbon content that minimizes carbide precipitation and improves weldability. They are essentially nonmagnetic as annealed and become lightly magnetic when cold worked.
| 309/309s Stainless Steel Coil Specification | ASTM A240 / ASME SA240 |
| 309/309s Stainless Steel Coil Manufacturing Process | Hot Rolled (HR) / Cold Rolled (CR) |
| 309/309s Stainless Steel Coil Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 |
| 309/309s Stainless Steel Coil Thickness | 0.6 MM TO 80 MM THICKNESS |
| 309/309s Stainless Steel Coil Width | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
| 309/309s Stainless Steel Coil Length | 2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
| 309/309s Stainless Steel Coil Surface Finish | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
| 309/309s Stainless Steel Coil Coating | PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white. |
| 309/309s Stainless Steel Coil Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
| 309/309s Stainless Steel Coil Value Added Services | Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| 309/309s Stainless Steel Coil Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| 309/309s Stainless Steel Coil Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
The chemical composition of grade 309/309s Stainless Steel is outlined in the following table
| Element | 309 | 309S | 309H |
|---|---|---|---|
| Chromium | 22.0 min.-24.0 max. | 22.0 min.-24.0 max. | 22.0 min.-24.0 max. |
| Nickel | 12.0 min.-15.0 max. | 12.0 min.-15.0 max. | 12.0 min.-15.0 max. |
| Carbon | 0.20 | 0.08 | 0.04 min.-0.10 max. |
| Manganese | 2.00 | 2.00 | 2.00 |
| Phosphorus | 0.045 | 0.045 | 0.045 |
| Sulfer | 0.030 | 0.030 | 0.030 |
| Silicon | 0.75 | 0.75 | 0.75 |
| Iron | Balance | Balance | Balance |
The mechanical properties of grade 309S Stainless Steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 620 MPa | 89900 psi |
| Tensile strength, yield (0.2%) | 310 MPa | 45000 psi |
| Izod impact | 120 - 165 J | 88.5 - 122 ft-lb |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poissons ratio | 0.3 | 0.3 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell (converted from Rockwell B hardness) | 147 | 147 |
| Hardness, Knoop (converted from Rockwell B hardness) | 164 | 164 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
309/309s STAINLESS STEEL COIL PHYSICAL PROPERTIES
Physical properties of 309/309s grade stainless steel in the annealed condition
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8 g/cm3 | 0.289 lb/in³ |
| Melting point | 1454°C | 2650°F |
Grade specifications for 309s grade stainless steel
| Properties | Metric | Imperial |
| Thermal expansion co-efficient (@ 0-100°C/32-212°F) | 14.9 µm/m°C | 8.28 µin/in°F |
| Thermal conductivity (@0-100°C/32-212°F) | 15.6 W/mK | 108 BTU in/hr.ft².°F |
| EN-standard Steel no. k.h.s DIN |
EN-standard Steel name |
SAE grade | UNS |
| 1.4109 | X65CrMo14 | 440A | S44002 |
| 1.4112 | X90CrMoV18 | 440B | S44003 |
| 1.4125 | X105CrMo17 | 440C | S44004 |
| 440F | S44020 | ||
| 1.4016 | X6Cr17 | 430 | S43000 |
| 1.4408 | G-X 6 CrNiMo 18-10 | 316 | S31600 |
| 1.4512 | X6CrTi12 | 409 | S40900 |
| 410 | S41000 | ||
| 1.4310 | X10CrNi18-8 | 301 | S30100 |
| 1.4318 | X2CrNiN18-7 | 301LN | |
| 1.4307 | X2CrNi18-9 | 304L | S3043 |
| 1.4306 | X2CrNi19-11 | 304L | S30403 |
| 1.4311 | X2CrNiN18-10 | 304LN | S30453 |
| 1.4301 | X5CrNi18-10 | 304 | S30400 |
| 1.4948 | X6CrNi18-11 | 304H | S30409 |
| 1.4303 | X5CrNi18-12 | 305 | S30500 |
| X5CrNi30-9 | 312 | ||
| 1.4841 | X22CrNi2520 | 310 | S31000 |
| 1.4845 | X 5 CrNi 2520 | 310S | S31008 |
| 1.4541 | X6CrNiTi18-10 | 321 | S32100 |
| 1.4878 | X12CrNiTi18-9 | 321H | S32109 |
| 1.4404 | X2CrNiMo17-12-2 | 316L | S31603 |
| 1.4401 | X5CrNiMo17-12-2 | 316 | S31600 |
| 1.4406 | X2CrNiMoN17-12-2 | 316LN | S31653 |
| 1.4432 | X2CrNiMo17-12-3 | 316L | S31603 |
| 1.4435 | X2CrNiMo18-14-3 | 316L | S31603 |
| 1.4436 | X3CrNiMo17-13-3 | 316 | S31600 |
| 1.4571 | X6CrNiMoTi17-12-2 | 316Ti | S31635 |
| 1.4429 | X2CrNiMoN17-13-3 | 316LN | S31653 |
| 1.4438 | X2CrNiMo18-15-4 | 317L | S31703 |
| 1.4362 | X2CrNi23-4 | 2304 | S32304 |
| 1.4462 | X2CrNiMoN22-5-3 | 2205 | S31803/S32205 |
| 1.4501 | X2CrNiMoCuWN25-7-4 | J405 | S32760 |
| 1.4539 | X1NiCrMoCu25-20-5 | 904L | N08904 |
| 1.4529 | X1NiCrMoCuN25-20-7 | N08926 | |
| 1.4547 | X1CrNiMoCuN20-18-7 | 254SMO | S31254 |
Why Choose Us?
1. who are we?
We are based in Wuxi, China, start from 2019,sell to Domestic Market and Abroad Market. There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
stainless steel plate,stainless steel coil,stainless steel sheet,stainless steel pipe and tube,sainless steel bar
4. why should you buy from us not from other suppliers?
Runs perennial exports of quality assured steel mills ,including Shanxi TISCO, Baosteel, Shanghai Krupp, Ningbo Baoxin, Guangzhou Lianzhong, Zhangjiagang Pohang, Qingdao Pohang, Sweden AvestaPolarit, Finland OUTKUMPU, Spain Acerinox, South Africa Columbus
