| Place of Origin | China |
| Brand Name | TISCO BAOSTEEL |
| Certification | SGS BV |
| Model Number | 1050 Aluminum Sheet |

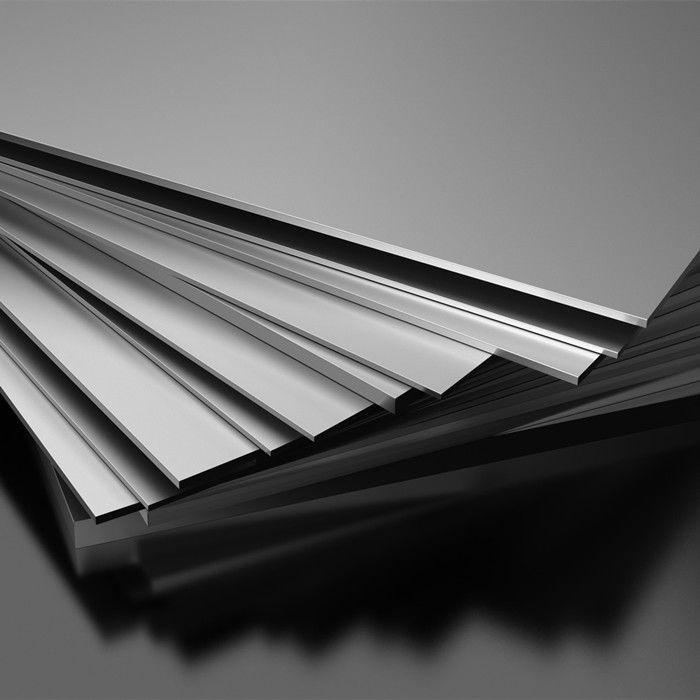

Aluminum Sheet Metal 1050 1060 1100 3003 0.1mm 0.4mm 1mm 3mm Aluminum Mirror Sheet Plate Factory
DESCRIPTION OF 1050 ALUMINUM SHEET:
1050 Aluminum Sheet is with the purity of aluminum↑99.5%, Tensile Strength 70-105MPa, Yield Strength Min 25MPa, Elongation Min 15%. Widely used for central air-conditioner, high voltage, weld ability, deep drawing and stamping, bending, cable, packaging, cookware, furniture, construction, decoration etc. Alloy, temper, thickness, width, length, and weight per pack can be customized as required. Every pallet factory has a strict quality control team. Good quality with competitive price, delivery time based on 3 weeks. Excellent service is after sale together.
CHEMICAL COMPOSITION OF 1050 ALUMINUM SHEET:
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | AL |
| ≤ | ≥ | |||||||||
| Content | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | - | 99.5 |
TECHNICAL PARAMETERS OF 1050 ALUMINUM SHEET:
| Alloy | Specification | Tensile Strength | Yield Strength | Elongation |
| Temper | Thickness(mm) | (MPa) | (MPa) | (%) |
| ≥ | ||||
| 1050 - H14 H24 |
˃0.50 - 0.80 | 95-130 | - | 2 |
| ˃0.80 - 1.50 | 75 | 4 | ||
PACKAGING SHOW:
1: Wooden pallets with waterproof paper and brown paper,
2: Drying agent as required and plastic paper,
3: Plywood on the bottom and top of pallets,
4: Hard board on the anodized steel fasten point,
5 : Or can be customized as buyers’ requirements.
|
Products
|
Alloy
|
Temper
|
Specification (mm)
|
Main Uses
|
|
|
Thickness
|
Width
|
||||
|
1000 Series |
1050, 1060,
1100, 1070,1200, 1235 |
O,H12,H14,H16,H18,H22,H24,H26
|
0.1-300.0 |
20-2800 |
Decoration, cookware
|
|
3000 Series |
3003, 3004,3104, 3105
|
O,H12,H14,H16,H18,H22,H24,H26
|
0.1-300.0 |
20-2800 |
Decoration, cookware
|
|
5000 Series |
5005, 5052,5754, 5083,5454,
5505,5A02, 5A03,5A05 |
O,F,H111,H112,H32,H34,H36,H38
|
0.2-480.0 |
20-2800 |
Aeronautics & Astronautics, Vessel, construction, molding
|
|
6000 Series
|
6061,6063, 6082
|
O,F,H112,T4,T6
|
0.2-480.0
|
20-2800
|
part of machine, electronics & electrics, transportation, etc.
|
|
7000 Series
|
7075, 7475
|
F, T6, T651
|
1-480
|
20-2800
|
Aeronautics & Astronautics
|
|
8000 Series |
8011 |
O, H111, H14, H24, H18
|
0.1-300 |
20-2800 |
Packing, household |
