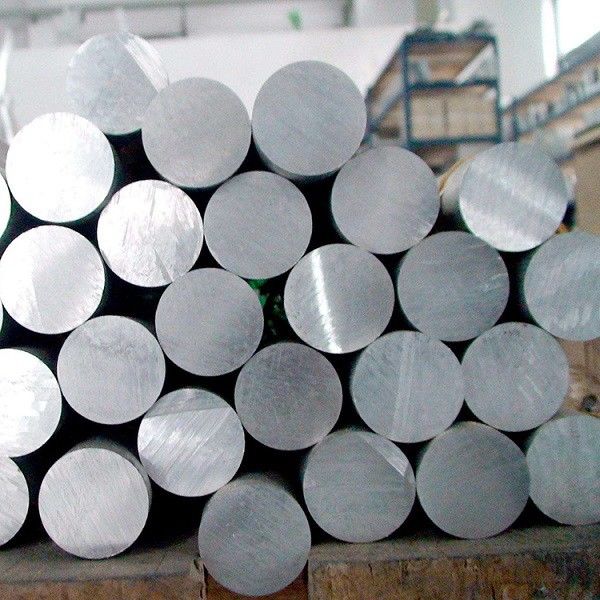

Polished Alloy Bright Steel Round Bar SS316L Forged Stainless Steel Round Bar
Stainless 316l Round Bar Definition Shandong Yimao Metal, are Recognized as the Prominent Manufacturer, Exporter and Supplier of a broad assortment of Stainless Steel 316l Round Bar. The offered SS 316l Round Bar is designed with utmost precision in conformity with the international quality standards.
316l Stainless Steel Round Bar can be categorically said that steel bars are one of the core components of any manufacturing industry or for that matter any industry that relies on machineries. versatile applications in automotive, textile, fabrication, construction, cement, ship building, paper and pulp, defence, heavy earth moving equipments or aerospace.
Grade 316l Stainless Steel is the standard "18/8" stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. The balanced austenitic structure of Grade 316l enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special "316lDDQ" (Deep Drawing Quality) variants.
Stainless Steel 316l Round Bars Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 316l | 1.4401 / 1.4436 | S316l00 | SUS 316l | 316lS31 / 316lS33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316l Round Bar Range
ASTM A276 316l Round Bar Specification | ASTM A276 / ASTM A479 /ASTM A182 / ASME SA276 / ASME SA479 / ASME SA182 |
ASTM A276 316l Round Bar Manufacturing Process | Hot Rolled / Cold Rolled / Hot Forging / Rolling / Machining |
ASTM A276 316l Round Bar Other Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316l / 316lL / 316lTi / 317L / 321 / 321H / 347 / 347H / 904L etc. UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S316l20, UNS S316l03, UNS S316l03, UNS S316l35, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 DIN / EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 AFNOR: Z2 CN 18.10, Z 6 CND 17-11, Z 2 CND 17-12,Z3 CrNi 22.05 AZ EURONORM: FeMi35Cr20Cu4Mo2, FeMi35Cr20Cu4Mo2, X1CrNiMo17 12 2, X3CrNiMo17 12 2, FeMi35Cr20Cu4Mo2, X2CrNiMoN 22.5.3 |
ASTM A276 316l Round Bar Dimension | Round Bars : Outside Diameter in the range of 4mm to 500mm Bright Bars : Outside Diameter in the range of 4mm to 200mm Hex Bars : 18mm to 57mm (11/16" to 2-3/4") Square Bars : 18mm to 57mm (11/16" to 2-3/4") Flat Bars : 1/2"to 10"in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
ASTM A276 316l Round Bar Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
ASTM A276 316l Round Bar Forms and Shape | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, HRAP, Bright, Shaft, Forging Etc. |
ASTM A276 316l Round Bar Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
ASTM A276 316l Round Bar Dimension Standard | ASTM A 484 / ISO h11 / ISO K12 Tolerances F8 / h8, h9, h10, h11, h12, k12, k13, A-484, EN-10060, DIN-1013 etc. |
ASTM A276 316l Round Bar Heat Treatment | Condition A in which the bars are Annealed Condition H in which the bars are Hardened and Tempered at a relative Temperature Condition T in which the bars are Hardened and Tempered at a relatively High Temperature Condition S in which the bars are Strain Hardened or relatively Light Cold Worked Condition B in which the bars are Relatively severe Cold worked. Solution Annealed, Aging and Double Aging |
ASTM A276 316l Round Bar Surface Finish | Centreless Ground & Belt Polished, up to Ra value = 0.2 um (12 RMS), and Grit Polished of up to 180 to 600 |
ASTM A276 316l Round Bar Chamfering | Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine |
ASTM A276 316l Round Bar Other Testing | NACE MR0175, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, Magnetic Particle Inspection (MPI), 100% tested thru Digital Ultrasonic Flaw Detector, as per ASTM A-388, EN 10308 (class 1to4),API 6A/ISO 10423:2003-PSL3,SEP 1920:1984 ( class A,B,C), MIL STD 2154 etc. |
ASTM A276 316l Round Bar Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Polishing |
ASTM A276 316l Round Bar Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
ASTM A276 316l Round Bar Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
ASTM A276 316l Round Bar Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
ASTM A276 316l Round Bar Documentation | Commercial Invoice which includes HS Code / Packing List including net weight and gross weight, number of boxes, Marks and Numbers / Certificate of Origin legalized/attested by Chamber of Commerce or Embassy / Fumigation Certificates / Raw Material Test Reports / Material Traceability Records / Quality Assurance Plan (QAP) / Heat Treatment Charts / Test Certificates certifying NACE MR0103, NACE MR0175 / Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 / Guarantee Letter / NABL approved Laboratory Test Reports / Welding Procedure Specification/Procedure Qualification Record, WPS/PQR / Form A for the purposes of the Generalized System of Preferences (GSP) |
316l Stainless Steel Round, Bright, Hex, Threaded Bar Chemical Composition
The chemical composition of grade Stainless Steel 316l Round Bar is outlined in the following table
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
316L Round Bar Mechanical and Physical Properties
The mechanical properties of grade 316l Round Bar are displayed in the following table.
Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316 | 515 | 205 | 40 | 95 | 217 |
316L | 485 | 170 | 40 | 95 | 217 |
316H | 515 | 205 | 40 | 95 | 217 |
316L Round Bar Physical Properties
Physical properties of 316l stainless steel Round Bar in the annealed condition
Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
316l/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Stainless Steel Bar Specifications
ASTM A276 | This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels. |
ASTM A479 | This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels. |
ASTM A484 | This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions. |
ASTM A582 | This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels. |
ASTM B473 | This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition. |
Stainless Steel 316l Round Bar Packing Shipment
ASTM A276 316l Round Bar is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and e for Transport with Proper Strips on Wooden Box, having Lifting Point.
FAQ
Q1. Are you a factory or just a trading company?
A1:We have both factory and trading company,own branch factory and warehouse in Jiangsu,Shandong Province and Tianjin to provide you best price and quality source goods ,and have professional International marketing team to offer you wide range of personalized services.
Q2. What are your company's main products ?
A2: Our main products cover high quality special steel like stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.Hastelloy,Inconel,maraging steel, austenite steel,super duplex stainless steel,carbon steel, copper and aluminum products.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspections are all available.
Q4. What are the advantages of your company ?
A4: We focus on maximum product performance and customer experience with scientific minimum cost,you will get most cost-effective goods.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from Asia countries like Singapore,Indonesia,Vietnam, Bangladesh,Korea,European countries like England,Belgium,Spain,Italy,Russia,Arabian countries like UAE ,Kuwait,Qatar ,Syria,America countries like USA,Mexico,Chili,Peru,South Africa countries... and so on.
Q6. Can you provide sample ?
A6: Small samples in store and can be provided for free without freight. Customized samples will take about 5-7days.
