| Place of Origin | China |
| Brand Name | TISCO BAOSTEEL |
| Certification | SGS BV |
| Model Number | 3104 Aluminum Sheet |

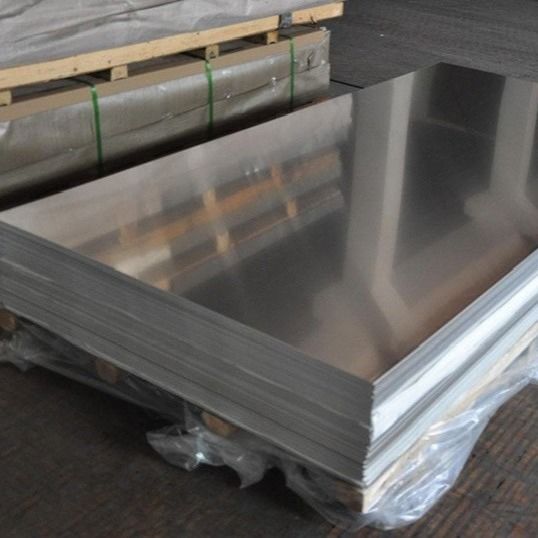

H114 3104 3003 1.2mm Coloured Anodised Aluminium Sheet For Laser Engraving
3104 aluminium sheet for cans is a very popular use, belongs to the deformation of aluminium alloy, with a high tensile strength ≥275 Mpa, and up to 20% elongation, thus showing excellent deep impact and processing ductility. Besides, 3104 aluminium sheet is also a typical 3-series Al-Mg alloy. Due to the content of the main alloy Mg, 3104 aluminium alloy has very good corrosion resistance, excellent anodizing effect, no low-temperature brittleness, strong weather resistance, etc. It is also widely used in the manufacturing fields of colour coated aluminium substrate, oxidizing material, aluminium shutter, lamp holder, cell phone battery shell, automobile fuel tank and so on.
| Aluminium alloy | 3104 |
| Material temper | F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H112, H114 |
| Thickness (mm) | 0.1-400 |
| Width (mm) | 100-2650 |
| Length (mm) | Customized |
| Typical Products | Cans, Beverage/ Beer cans, Color coated Aluminium substrate, Lamp cap material, Shutter material, Widescreen wall plate, Liquid crystal backing material, etc. |
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Others | Al |
| Content | ≤0.50 | ≤0.70 | ≤0.10 | 0.9~1.5 | ≤0.30 | ≤0.10 | 0.05 | Remain |
1. Excellent Processing Ductility. 3104 aluminium sheet can be used for milling, boring, planning and other processing at the highest speed of most machine tools. It can also greatly reduce the thickness and stretch, good formability, and excellent deep punching effect.
2. Best Corrosion Resistance. 3104 aluminum alloy can well resist the corrosion of gasoline, neutral inorganic salt solution, organic acid, food, dilute acid or industrial environment.
3. Outstanding Anodic Oxidation. 3104 aluminum sheet is a typical colour coated substrate, the surface of which has been anodized or coated to present excellent results.
3104-h19 aluminium sheet has appropriate strength, excellent deep impact, formability, and ductility. In this way, 3104 aluminum sheet can be thinned and stretched better, which greatly reduces the consumption of canning materials and the purchase cost in batches. Besides, the cans made of the 3104-h19 aluminium sheet has the advantages of light texture, rich colour, sealing, shading, tasteless, non-toxic, high and low-temperature resistance, etc.
In addition, 3104 aluminium sheet is also frequently used colour coated aluminum substrate, oxidizing materials, and widely used in aluminium shutter, lamp cap materials, cell phone battery shell, car fuel tank and other manufacturing.
The standard export packaging, plastic film or craft paper covered at customers’ requirements. Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
As a professional aluminium sheet manufacturer and supplier in China, Shandong Yimao Metal is one of the TOP5 aluminum sheet factories. We are one of the biggest Chinese aluminium sheet suppliers of 3104 aluminium sheet. We also produce aluminium slit coil, aluminium strip, coated aluminium coil, aluminium plate, aluminium sheet metal, anodized aluminium sheet, embossed aluminium sheet, etc.
Shandong Yimao Metal Aluminum provides you with first-rate quality, attractive and reasonable prices. Excellent surface quality and package, fast delivery. If you are looking for a 3104 aluminium sheet supplier in China, Shandong Yimao Metal is your best choice. We promise you the best price and excellent service. For more detailed information, please feel free to contact us directly.
|
Products
|
Alloy
|
Temper
|
Specification (mm)
|
Main Uses
|
|
|
Thickness
|
Width
|
||||
|
1000 Series |
1050, 1060,
1100, 1070,1200, 1235 |
O,H12,H14,H16,H18,H22,H24,H26
|
0.1-300.0 |
20-2800 |
Decoration, cookware
|
|
3000 Series |
3003, 3004,3104, 3105
|
O,H12,H14,H16,H18,H22,H24,H26
|
0.1-300.0 |
20-2800 |
Decoration, cookware
|
|
5000 Series |
5005, 5052,5754, 5083,5454,
5505,5A02, 5A03,5A05 |
O,F,H111,H112,H32,H34,H36,H38
|
0.2-480.0 |
20-2800 |
Aeronautics & Astronautics, Vessel, construction, molding
|
|
6000 Series
|
6061,6063, 6082
|
O,F,H112,T4,T6
|
0.2-480.0
|
20-2800
|
part of machine, electronics & electrics, transportation, etc.
|
|
7000 Series
|
7075, 7475
|
F, T6, T651
|
1-480
|
20-2800
|
Aeronautics & Astronautics
|
|
8000 Series |
8011 |
O, H111, H14, H24, H18
|
0.1-300 |
20-2800 |
Packing, household |
